/12901E Switch Chassis (JH951A).jpg)
Thiết bị chuyển mạch HPE FlexFabric 12901E Switch Chassis (JH951A)
· [Đầy đủ CO + CQ]
· [Bảo Hành: Chính hãng 36 tháng]
· [Kho hàng: Stock sẵn]
· [Liên hệ HOTLINE để có giá tốt nhất]

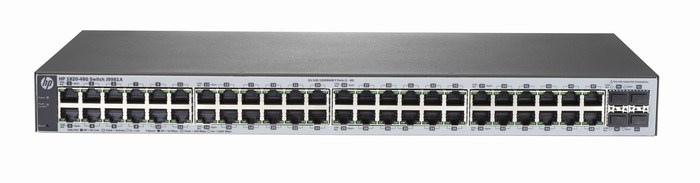

HPE 1820-48G Switch J9981A
Switch HPE OfficeConnect 1820 48G J9981A
Thiết bị chuyển mạch HPE 1820 48G J9981A là Switch 48 Port Gigabit và 4 Port SFP 1G
- Phần cứng mạnh mẽ: Bộ xử lý ARM Cortex-A9 @ 400 MHz, cùng SDRAM 128MB
- Khả năng xử lý gói tin cao: Throughput lên đến 77.3Mp/s, Switching capacity: 104Gb/s, MAC address table size: 16000 entries
- Sở hữu các tính năng của Switch Layer 2 như: VLAN Support, Jumbo packet Support, IGMP snooping, Loop protection, QoS ( Traffic prioritization, Broadcast control IEEE 802.1p/Q), STP, RSTP, Link aggregation,...
- Lắp đặt tủ rack dễ dàng ( cao 1U)

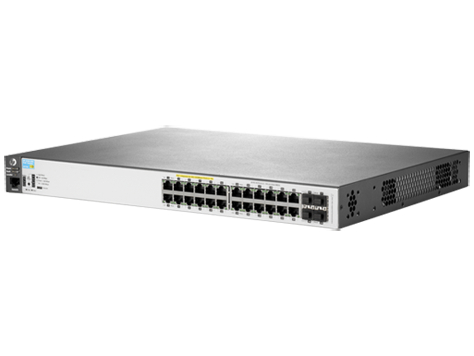

HPE 2530-24G-PoE Switch J9773A
HPE 2530-24G-PoE Switch J9773A
– Fixed Port Layer-2 Managed Ethernet Switch.
– 24 RJ-45 autosensing 10/100/1000 PoE ports, 4 dual-personality ports; RJ-45 10/100/1000 or SFP slot

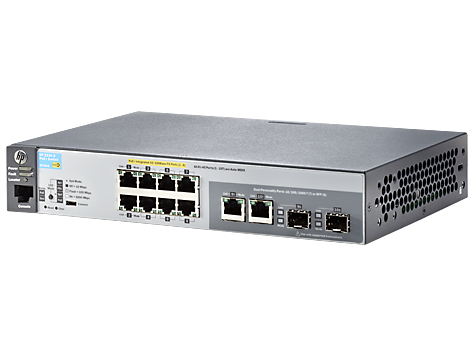

HPE 2530-8-PoE+ Switch J9780A
HPE 2530-8-PoE+ Switch J9780A
– Fixed Port Layer-2 Managed Ethernet Switch.
– 8 RJ-45 autosensing 10/100 PoE ports, 2 dual-personality ports; RJ-45 10/100/1000 or SFP slot.
Features
Quality of Service (QoS)
– Traffic prioritization (IEEE 802.1p): allows real-time traffic classification with support for eight priority levels mapped to either two or four queues; uses weighted deficit round robin (WDRR) or strict priority (SP)
– Simplified QoS configuration: Port-based: prioritizes traffic by specifying a port and priority level. VLAN-based: prioritizes traffic by specifying a VLAN and priority level.
– Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
– Rate limiting: sets per-port ingress enforced maximums for all ingressed traffic or for broadcast, multicast, or unknown destination traffic
– Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers
Management
– Choice of management interfaces: Web graphical user interface (GUI): HTML-based easy-to-use graphical interface allows configuration of the switch from any Web browser. Command-line interface (CLI): provides advanced configuration and diagnostics through a robust CLI. Simple Network Management Protocol (SNMPv1/v2c/v3): allows a switch to be managed with a variety of third-party network management applications.
– Virtual stacking: provides single IP address management for up to 16 switches
– sFlow (RFC 3176): delivers wire-speed traffic accounting and monitoring configured by SNMP and CLI with three terminal encrypted receivers
– IEEE 802.1AB Link Layer Discovery Protocol (LLDP): automates device discovery protocol for easy mapping by network management applications
– Logging: provides local and remote logging of events via SNMP (v2c and v3) and syslog; provides log throttling and log filtering to reduce the number of log events generated
Connectivity
– IPv6: IPv6 host: allows the switch to be deployed and managed at the edge of an IPv6 network. Dual stack (IPv4/IPv6): supports connectivity for both protocols; provides a transition mechanism from IPv4 to IPv6. MLD snooping: forwards IPv6 multicast traffic to the appropriate interface; prevents IPv6 multicast traffic from flooding the network.
– IEEE 802.3af Power over Ethernet (PoE): provides up to 15.4 W per port to IEEE 802.3af-compliant PoE-powered devices such as IP phones, wireless access points, and security cameras
– IEEE 802.3at Power over Ethernet Plus: provides up to 30 W per port to IEEE 802.3 for PoE/PoE+-powered devices such as video IP phones, IEEE 802.11n wireless access points, and advanced pan/tilt/zoom security cameras (see product specifications for total PoE power available)
– Auto-MDIX: adjusts automatically for straight-through or crossover cables on all ports
– Pre-standard PoE support: detects and provides power to pre-standard PoE devices
Layer 2 switching
– VLANs: provides support for 512 VLANs and 4,094 VLAN IDs
– Jumbo packet support: supports up to 9220-byte frame size to improve the performance of large data transfers; 8- and 24-port Fast Ethernet models automatically support up to 2000-byte frames with no configuration needed
– 16K MAC address table: provides access to many Layer 2 devices
– GARP VLAN Registration Protocol: allows automatic learning and dynamic assignment of VLANs
– Per-VLAN Spanning Tree Plus (PVST+): allows each VLAN to build a separate spanning tree to improve link bandwidth usage in network environments with multiple VLANs
Specifications
| I/O ports and slots | 8 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: half or full | |
| 2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) ports | ||
| 1 dual-personality (RJ-45 or USB micro-B) serial console port | ||
| Physical characteristics | Dimensions | 10(w) x 6.28(d) x 1.75(h) in (25.4 x 15.95 x 4.45 cm) (1U height) |
| Weight | 2.0 lb (0.91 kg) | |
| Memory and processor | Processor | ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated |
| Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting | |
| Performance | IPv6 Ready Certified | |
| 100 Mb Latency | < 1.3 µs (LIFO 64-byte packets) | |
| 1000 Mb Latency | < 2.3µs (LIFO 64-byte packets) | |
| Throughput | up to 4.1 million pps (64-byte packets) | |
| Switching capacity | 5.6 Gbps | |
| MAC address table size | 16000 entries | |
| Environment | Operating temperature | 32°F to 113°F (0°C to 45°C) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C), noncondensing | |
| Non-operating/ | -40°F to 158°F (-40°C to 70°C) | |
| Storage temperature | ||
| Non-operating/Storage relative humidity | 15% to 90% @ 149°F (65°C), noncondensing | |
| Altitude | up to 10,000 ft (3 km) | |
| Acoustic | Power: 0 dB, Pressure: 0 dB | |
| Electrical characteristics | Frequency | 50/60 Hz |
| Maximum heat dissipation | 29 BTU/hr (30.6 kJ/hr), (switch only: 29 BTU/hr; | |
| combined switch + max. PoE devices: 262 TU/hr) | ||
| AC voltage | 100-127/200-240 VAC | |
| Current | 1.4 A | |
| Maximum power rating | 76.7 W | |
| Idle power | 5.8 W | |
| PoE power | 67 W | |
| Safety | UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 | |
| Emissions | FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A | |
| Immunity | Generic | EN 55024, CISPR 24 |
| EN | EN 55024, CISPR 24 | |
| ESD | IEC 61000-4-2 | |
| Radiated | IEC 61000-4-3 | |
| EFT/Burst | IEC 61000-4-4 | |
| Surge | IEC 61000-4-5 | |
| Conducted | IEC 61000-4-6 | |
| Power frequency magnetic field | IEC 61000-4-8 | |
| Voltage dips and interruptions | IEC 61000-4-11 | |
| Harmonics | EN 61000-3-2, IEC 61000-3-2 | |
| Flicker | EN 61000-3-3, IEC 61000-3-3 | |
| Management | IMC – Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB); | |
| IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB | ||
| Notes | IEEE 802.3az applies to Gigabit models only; IEEE 802.3at and IEEE 802.3af apply to PoE+ models only. When using SFPs with this product, SFPs with revision ‘B’ or later (product number ends with the letter ‘B’ or later, e.g., J4858B, J4859C) are required. | |

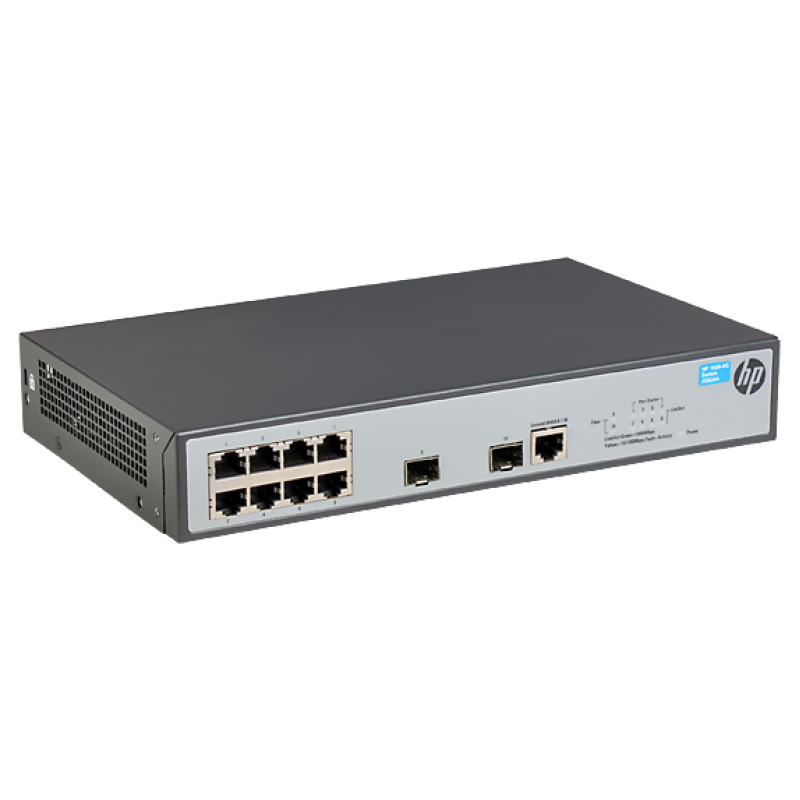

HPE 1920-8G Switch JG920A
HPE 1920-8G Switch JG920A
– The HP 1920 Switch Series, part of the HP OfficeConnect portfolio, is designed for smaller organizations dealing with bandwidth-demanding applications. The switches are ideal for environments that require advanced features for granular control and where smart-managed flexibility is a must for easy network configuration and management.
– The switches deliver advanced smart-managed fixed configuration Gigabit switches that build on the marketing-leading price/performance of the HP 1910 Switch Series. They feature a new 48-port PoE+ model, IPv6 support and advanced silicon technology.
Features
– Simplifies Network Deployment and Management for Small Organizations
– The HP 1920 Switch Series, ideal for small organizations features easy-to-use, out of the box, plug-and-play deployment.
– The series offers a complete portfolio of choices for increased flexibility. It consists of nine rack-mountable models with internal power supplies including four non-Power over Ethernet (PoE) models: 8G-, 16G-, 24G- and 48G- port; five PoE+ models: (2) 8G-, (2) 24G- and 48G-port.
– These smart-managed switches use an intuitive Web management interface, based on our industry-leading HP 1910 Switch Series, to simplify deployment and management while offering you greater granularity of control of key features.
Keeps Your Business up and Running and Protected
– The HP 1920 Switch Series with upgraded models and options is built on the market-leading, proven reliability of the HP 1910 Switch Series with advanced silicon technology for lower power consumption and an enhanced feature set for more robust operation.
– Enhanced security features such as Access Control List, IEEE 802.1x and VLANs guard your network from unwanted or unauthorized access.
– Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection and supports secure http (https).
Delivers Improved Performance, While Lowering the Total Cost of Ownership
– The HP 1920 Switch Series delivers advanced functionality in smart-managed switches, including Layer 3 static routes, SFP ports, IPv6 support, rate limiting, link aggregation and IGMP.
– Smaller enclosures facilitate flexible deployment.
– The switch series includes PoE+ options to power IP devices without the cost of additional cabling.
– Advanced silicon technology, green features like Port shutdown and EEE compliance for greater energy-efficiency and the Limited Lifetime Warranty significantly reduce TCO.
Specifications
| Differentiator | 8-port gigabit advanced smart managed switch with 2 GbE SFP ports |
| Ports | 8 RJ45 auto-negotiating 10/100/1000 ports |
| 2 SFP 1000 Mbps ports | |
| Supports a maximum of 8 autosensing 10/100/1000 ports plus 2 1000BASE-X SFP ports, or a combination | |
| Memory and processor | MIPS @ 500 MHz |
| 32 MB flash | |
| packet buffer size: 4.1 KB | |
| 128 MB RAM | |
| Latency | 100 Mb Latency: < 5 µs |
| 1000 Mb Latency: < 5 µs | |
| Throughput | Up to 14.8 Mpps |
| Routing/ Switching capacity | 20 Gbps |
| Minimum dimensions | 26.6 x 16.2 x 4.4 cm |
| Weight | 0.9 kg |
HDD HPE 900GB 12G SAS 10K RPM SFF 2.5″ (785069-B21)
HDD HPE 900GB 12G SAS 10K RPM SFF 2.5″ (785069-B21)

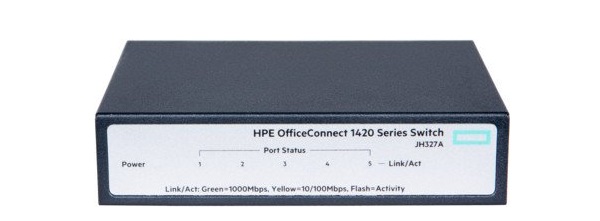

HPE 1420 OfficeConnect 5-port Gigabit Switch JH327A
- Thiết bị chuyển mạch HPE JH327A được thiết kế để hoạt động phù hợp với lớp Accees (lớp truy nhập mạng đầu cuối) với chi phí đầu tư là thấp trong dòng Switch HPE OfficeConnect 1420 Switch Series.
- Thiết bị chuyển mạch HPE JH327A được tăng cường bảo mật bằng cách sử dụng các công nghệ virtual LANs, link aggregation, hoặc IGMP Snooping boost uplink performance, và loop prevention enhances network reliability. Switch HPE JH327A sử dụng điện AC 220V.
- Thiết bị chuyển mạch HPE JH327A cho phép dễ dàng quản lý ngay cả bởi người dùng không biết kỹ thuật thông qua giao diện Wed trực quan, hỗ trợ HTTP và HTTP Secure (HTTPS)
- Thiết bị chuyển mạch HPE JH327A được thiết kế theo chuẩn EIA 19-inch 1U phù hợp với tất cả các loại tủ rack hoặc gắn trên tường

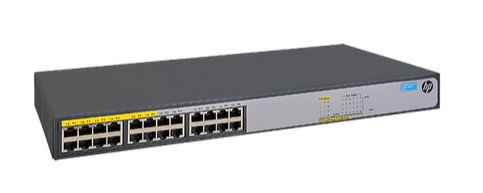

HPE 1420-24G-PoE+ (124W) Switch JH019A
- - HPE 1420 24G PoE+ (124W) Switch
- - Ports: 24 RJ45 autosensing 10/100/1000 ports
- 2 fixed 1000/10000 SFP+ ports
- Supports a maximum of 24 autosensing 10/100/1000 ports plus 2 SFP+ ports
- - Memory and processor: 8 MB flash
- - Packet buffer size: 1.5 MB

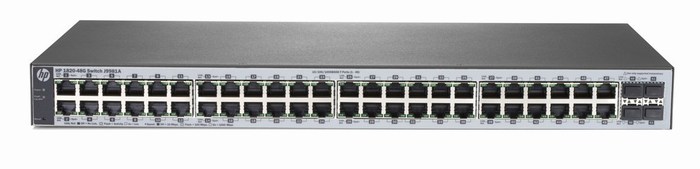

HPE OfficeConnect 1820 48G PoE+ (370W) Switch – J9984A
- Bộ chuyển mạch HPE 1820 Switch Series cung cấp nhiều sự lựa chọn và linh hoạt hơn cho các tổ chức, doanh nghiệp nhỏ yêu cầu dễ sử dụng và chi phí sở hữu (TCO) thấp, đồng thời mang lại hiệu suất mạng tốt hơn.
- Bộ chuyển mạch HPE 1820 Switch được quản lý thông minh, cấu hình cố định, chuyển mạch Gigabit Ethernet Layer 2 trong một giải pháp dễ quản trị có khả năng tiết kiệm năng lượng. Và bộ chuyển mạch có thể được điều chỉnh thông qua GUI dựa trên trình duyệt Web đơn giản khi cần
- (24) RJ-45 autosensing 10/100/1000 PoE+ ports; (24) RJ-45 autosensing 10/100/1000 ports; (4) SFP 100/1000 Mbps ports
